| General Specification |
|
| Model No. |

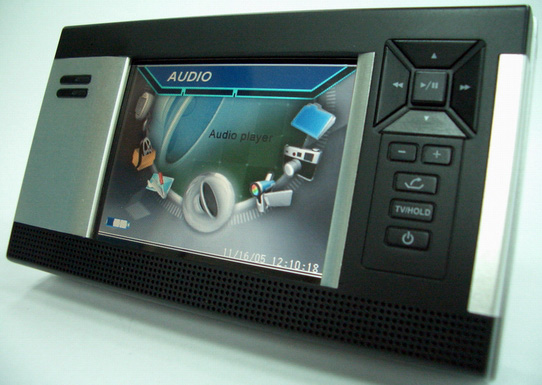

JA690 |
| Functions |
1. MPEG4 Digital Video Player (MPEG 1/2/4, DivX 3/4/5, WMV9),
2. MPEG4 Digital Video Recorder,
3. MPEG4 Digital Video Camcorder (Optional)
4. Digital Photo Wallet/ Viewer,
5. Digital Voice Recorder/player,
6. MP3 & WMA Music Player,
7. USB 2.0 Portable Disk & SD/MMC Card Reader |
| Display |
3.5￣ Hi-Resolution LCD (320x240 RGB) |
| Storage |
Removable 20~80 GB 2.5￣ IDE HDD/ SD&MMC Card Slot |
| Interface |
SD/MMC Card Slot/USB 2.0/AV in/AV out/DC-in |
| User U/I |
Multi-Lingual OSD/ Keypads |
| Microphone |
Mono/ Built-in |
| Speakers |
Stereo/ Built-in |
| Battery Type |
Removable 3.7V 2300mAh Li-Polymer rechargeable battery |
| Battery Life |
Approx. 4 Hours in Continuous Video Recording/playback
Approx. 8 Hours in Continuous Music recording/Playback |
| Size |
147 (W) x83 (H) x 30 (T) mm |
| Weight |
290 gm (With HDD & battery) |
|
| |
| MPEG-4 Digital Video Player:
|
 |
| |
，Support direct playback of Multiple Video format,
up to 720x480@30 FPS (MPEG I/II, DivX 3/4/5, XVID, WMV9, AVI, ASF)
，Watch and enjoy DVD quality MPEG-4 Video anytime, anywhere through
built-in 3.5￣ Hi-Quality LCD screen, or output to external TV or projector.
，Support 2/4/8/16 times fast forward/ rewind playback function
，With easy to maintain favorite playback list editor
，5 levels EQ control during video playback |
| MPEG4 Digital Video Recorder:
|
 |
| |
，Real-time Audio/Video recording from any sources
(through supplied RCA cables), and covert them into MPEG-4 format,
then store into internal HDD or SD/MMC card. (Up to 80 hrs of video
in a 40 GB HDD)
，MP4 video with MP3 sounds up to 640 x 240@30 FPS; MP4 video with
G.762 sounds up to 640 x480@30 PFS. (All in ASF format)
，8 levels of selectable recording timer from 30 minutes to 4 hrs
，2 levels of selectable recording video Resolution (640x 480@30 FPS
/320x240@30 FPS)
，3 levels of selectable video recording quality (Basic/Normal/Fine)
，Recorded Video can be backup to PC via USB 2.0 connection and playback
video in PC with Window built-in Media Player |
| MPEG4 Digital Video Camcorder
(Optional) |
，Turn your PVR into a MPEG4 Digital Video Camcorder
by plug-in the optional video camcorder module and record LIVE audio
& video and store into internal HDD or SD/MMC card.
，Record Live MP4 Video with sounds up to 640x480@30FPS.
，VGA Quality CMOS sensor with Microphone
，Camcorder module run for more than 2 hrs in 2 AAA batteries |
| Digital Photo Wallet / Viewer:
|
 |
| |
，Support Baseline JPEG (Up to 6 Mega Pixels), BMP
and GIF
，Store over 200,000 JPEG photos (at 1600x1200 pixels) in a 40 GB HDD.
，Auto slideshow with background music function (MP3 or MWA)
，Support Thumbnail/ Full-Screen View.
，Auto Resize Photo to full Screen View. |
| |
| Digital Voice Recorder/Player:
|
 |
| |
，Support digital voice recording in MP3/Wav format.
，Voice recoding & playback can be done via built-in microphone
and playback through internal stereo speakers or external earphone.
，3 levels of selectable voice recording quality (Basic/Normal/Fine)
，8 levels of selectable recording timer from 30 minutes to 4 hrs
，Recording voice up to 1800 hours in a 40 GB HDD |
| |
| MP3, WMA, AAC Music Player:
|
 |
| |
，Support MP3, WMA & AAC-LC music playback
，Support WMA DRM 9/10
，Support ID3 tag function (Version 1.2)
，With easy to maintain favorite playback list editor
，Support multiple repeat modes to repeatedly playback one or all files
in sequence: Single/Folder/Favorite
，Support 5 levels EQ control in audio playback |
| |
| USB 2.0 Portable Disk &
SD/MMC Card Readers: |
，All Files stored in the SD/MMC card can be playback directly from
the unit¨s built-in LCD & speakers.
，Data stored in the SD/MMC card can backup to unit¨s internal HDD,
to free up their limited memory capacity.
，Work as a USB 2.0 Portable disk and SD/MMC card reader to store all
types of multimedia & PC files and transfer them to another PC
via USB 2.0 high-speed connection.
，Support Multi-lingual file name & ID3 tag display |
| |
| Other Features |
| |
，Support NTSC/PAL Video Output/ Input
，Multi-lingual OSD and File name display for easy operation
，Move/Copy/Delete files or even create new folder from unit directly
without PC involve through unit¨s built-in file manager
，Removable 2.5￣ HDD for easy HDD replacement/upgrade (Support major
brands of 2.5￣ 20~80 GB HDD)
，Removable Li-Polymer rechargeable battery and auto-voltage DC Adapter/
Charger (100~240 Volts)
，Free upgradeable firmware via USB
，Come with kickstand to form an easy to view angle when placing the
unit in the table or flat surface. |
| |
| Standard Accessories |
| |
，AV Cable
，Mini USB Cable
，Earphone
，Rechargeable Lithium-Ion Battery
，Carrying Pouch
，Multi-voltage Adapter/ Charger
，Manual/ Tool CD
，Quick Guide |
| |
| Optional Accessories |
| |
，VGA Quality CMOS Video Camcorder Module
，Car Charger
，FM Transmitter |
| |
| |
